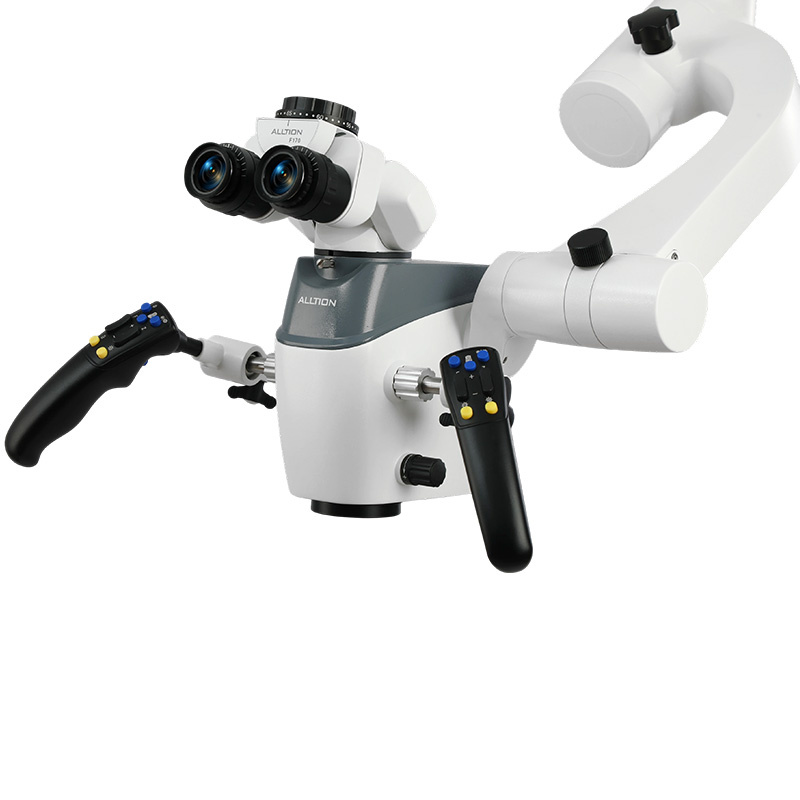

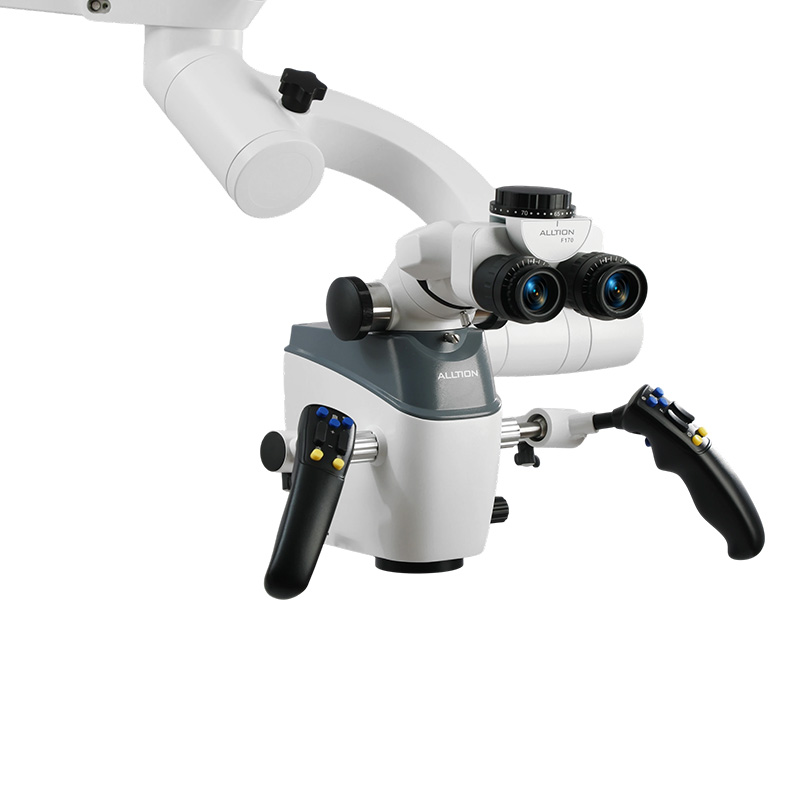

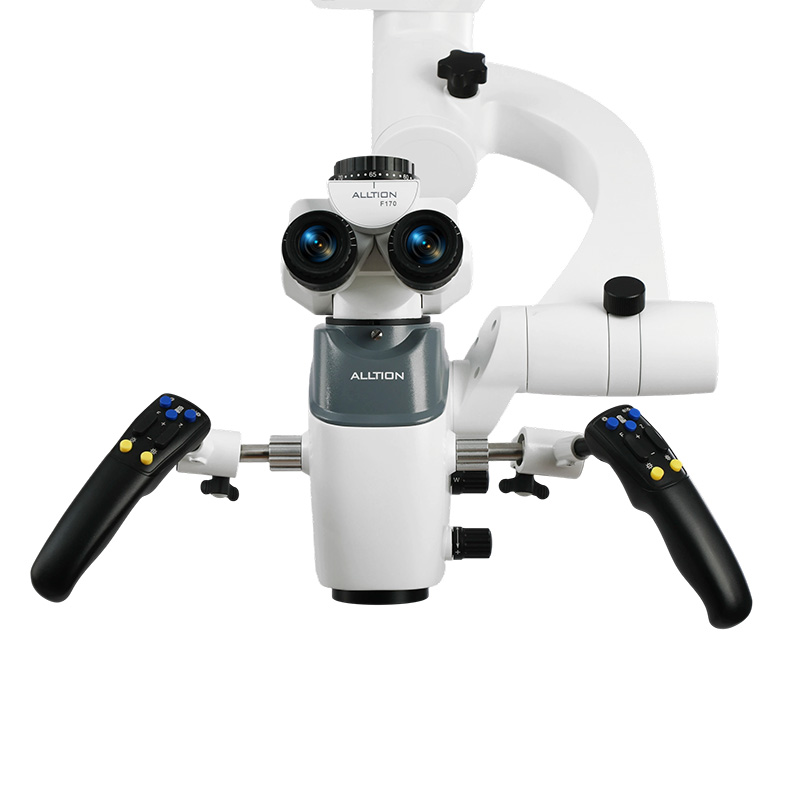

ANGEL-60 Dental Microscope

The Envy of Microscope-Enhanced Dentistry

The ANGEL 60 has applications across many fields:

Oral Implant Surgery: The ANGEL 60 offers high level magnification and a crystal clear field of view enabling users to observe the every detail of implants and the implantation area in real time, ensuring accurate placement and helping to avoid damage to surrounding tissue.
Endodontic Treatment: The ANGEL 60 supports accurate detection and diagnosing of root canal issues, and in performing cleaning and filing operations.
Oral Surgery: The ANGEL 60 helps accurately locate and manage structures of the mouth including protruding bone spurs, cysts periapical lesions.
Dental Pulp Treatment: The ANGEL 60 facilitates better observation of dental pulp during treatment.
Aesthetic Dentistry and Restoration: The ANGEL 60 enhances your ability to perform flawless restorations and other aesthetic procedures.

Customizable Controls

Thumb-shifted adjustment, focusing range of 200mm-310mm or 250-mm-430mm, fine focusing range of 12mm. Two types of filter: orange, green. Three types of light spot: maximum, medium, minimum.

Light Intensity + and –

Motorized Focus

Continuous Zoom

Photo/Video Capture

“Space Walk” Multi-Function Handle

0-180° Inclinable binocular

Immersive Experience

The Angel 60 is a fusion of utility and aesthetics making it the focal point of any practice. The smooth acton of the balancing arm and weightless feel reduce fatigue and protect occupational longevity.

Smart Display

Never guess when it comes to Light Intensity, Magnification Level, or Control Settings.

“Space Walk” Multi-Function Handle

The Angel 60 seemingly defies the laws of gravity. In fact, operation of this microscope is so smooth, an electromagnetic locking system has been added to allow the operator to freeze the head in the perfect position.

Automatic Anti-Glare

A built-in intermittent light sensor recognizes polarized light path and patterns, and automatically switches to anti-glare mode.

Built-in 4K Camera System

The built-in 4K camera system provides hi-definition images and video transmission. Procedures may be observed in real time and are easily shared with patients and staff. The camera allows for recording and image capture, making it easier to conduct post-operative reviews and enhance provider-patient communication.

Photograph ⦿ Video Recording ⦿ Freeze ⦿ USB Storage ⦿ Double HDMI Channel Output ⦿ Playback ⦿ Contrasting Photo-Photo, Photo-Live Images ⦿ Mouse Operated ⦿ Built-In WIFI Function ⦿ Wireless Foot Control

Fluorescence and White Illumination

The Angel 60 offers two modes of illumination: white and fluorescence. When fluorescence mode is activated, the microscope engages the anti-violet shield to safeguard operators’ eyes. This fluorescence mode assists in discerning between natural hard tooth tissue and dental composite resin material. This not only accelerates the identification of affected areas but also conserves valuable chair time during the excavation process.

Illumination Mode

5 Illumination modes allow the operator to adjust the light source to suit their needs.

Light beam size can be adjusted between minimum, medium, and maximum.
Orange filter prevents premature curing of resin material.
Green filter enhances visualization of blood vessels

Motorized Continuous Zoom

Find your desired magnification level with button controlled continuous zoom. The Angel 60 allows users to zoom in and out, from 1.7x – 19x, without the disruption of manual zoom.

The Apex of Microscope-Enhanced Dentistry

Experience precision like never before with the Angel-60 dental microscope by Alltion. Meticulously engineered to elevate dental procedures, this advanced instrument combines cutting-edge technology with intuitive design. Featuring a versatile magnification range, powerful LED illumination, and an integrated camera system, the Angel-60 ensures crystal-clear visualization and seamless documentation. Its flexible articulating arm offers effortless positioning, while the ergonomic design enhances user comfort throughout procedures. Discover a new standard of excellence in dentistry with the Angel-60 – where precision meets innovation.

	OVERVIEW
Magnification System	Motorized 1:6.25 ratio zoom,magnificationrange: 0.4X-2.5X Total magnification(12.5X eyepiece,198mm-455mm objective): 1.7X→19X
Binocular	All Alltion dental microscopes come standard with a 0-180° inclinable binocular head allowing the microscope to conform to the operator’s most comfortable, ergonomic position.
Objective Lens	Motorized 198-455mm variable objective lens
Illumination	Dual lamp design Natural light LED Orange/green filter Maximum/medium/minimum light spot
4K Integrated Camera	The built-in 4K camera system provides hi-definition images and video transmission. Procedures may be observed in real time and are easily shared with patients and staff. The camera allows for recording and image capture, making it easier to conduct post-operative reviews and enhance doctor-patient communication. 3D camera system optional.
Multi-Function Handle	Motorized variable objective lens, motorized zoom Electronic light intensity adjustment Photograph/Video Recording One-touch electromagnetic lock Customizable camera control button
Smart Monitor Display	Magnification level, focal distance, light intensity, focusing speed, zoom speed

	BUILT-IN 4K CAMERA SPECIFICATIONS
Sensor	1/1.8 Inch Sony high-sensitivity and low-noise CMOS
Output Interference	HDMI, USB 2.0
Video Resolution	4K (3840×2160) 60FPS (16:9) / MP4 Format
Camera Split Ratio	2:8
Video Resolution	4K
Picture Resolution	8M (38402160), 2M (19201080) / JPG Format
Basic Functions	Screen Freeze, Image Capture, Video Record, Automatic Exposure, White Balance, Play Back and Cross Curve, Sound Recording
Image Effect	Exposure, AE Light, Gain, Red Gain, Blue Gain, Saturation, Contrast, Sharpness, HDR, Detail, BLC
System Settings	Automatic/Autonomous Naming, Show/Hide Time, Show/Hide Logo, Image Resolution, Naming Setting, System Update, Restore Default, Version Information

	OPTICAL PARAMETERS
Objective Lens	F=198–455mm
	F=198mm		F=300mm		F=455mm
Magnification Charge	Total Magnification	Field of View (mm)	Total Magnification	Field of View (mm)	Total Magnification	Field of View (mm)
0.4	3.0x	71.8	2.3x	96.1	1.7x	132.0
0.6	4.6x	47.9	3.4x	64.1	2.5x	88.0
1	7.6x	28.7	5.7x	38.5	4.1x	52.8
1.6	12.2x	18.0	9.1x	24.0	6.6x	33.0
2.5	19.0x	11.5	14.2x	15.4	10.4x	21.1
